High-Performance STEP Steel Poles: Versatile Engineering for Urban Infrastructure
STEP Steel Poles, commonly referred to as stepped lighting poles, are a sophisticated structural solution designed for modern roadway and municipal lighting. Unlike traditional tapered designs, these poles utilize a multi-section shaft with distinct diameter transitions. This unique segmented configuration allows for optimized material distribution, providing an exceptional balance between high load-bearing capacity and manufacturing cost-efficiency.
Superior Surface Protection and Durability
To guarantee long-term performance in outdoor environments, every STEP steel pole undergoes a rigorous Hot-dip Galvanization process in accordance with UNI EN ISO 1461. This provides a formidable barrier against corrosion. For projects requiring specific aesthetic integration or extra protection in harsh climates, we offer optional powder coating or specialized marine paint finishes.
Flexible Mounting and Installation Solutions
Recognizing that site conditions vary, our STEP steel poles support two primary mounting methods:
Planted Mounting: Ideal for direct-bury applications, featuring rooted depths of 500mm to 800mm.
Flange Plate Mounting: Designed for concrete foundations, utilizing heavy-duty anchor bolts (M16–M20) for maximum stability.
Each pole is equipped with essential accessories for ease of maintenance, including a reinforced hand hole for electrical access, internal cable entry points, and compatibility with single or double arm brackets.
Technical Specifications
Our stepped steel poles are crafted from premium structural steel grades Q235 (S235JR) and Q355 (S355JR), ensuring high tensile strength and resilience against environmental stressors.
| Height & Grade Options: | We offer a versatile height range tailored to project requirements. Poles utilizing S235JR steel are available from 3.0m to 11.8m, while high-strength S355JR variants extend from 4.0m up to 12.0m |
| Precision Dimensions: | To ensure universal luminaire compatibility, all poles feature a Top Diameter of Ø60 mm. The Bottom Diameter scales from Ø76 mm to Ø193 mm depending on the specific section design and total height, providing a stable foundation for varied lighting loads |
| Structural Integrity: | With a wall thickness of 3.0 mm to 4.0 mm and precision-welded joints, these poles offer reliable performance under wind loads and heavy equipment stress |
Applications

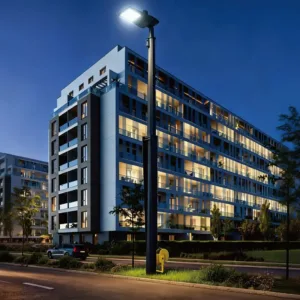

From urban streets and residential roads to industrial parks and parking areas, the STEP steel pole is a reliable choice for LED street lights and smart lighting systems. Its segmented structure ensures ease of installation and long-term durability for any municipal infrastructure project.
